Tinko provides wide range of heavy duty connectors for hot runner system. They are mostly used for Hot Runner Manifold, Robot Interface, Power and Thermocouple connections for Plastics. All power connectors & thermocouple connectors are physically interchangeable as they will fit any mold power cable and thermocouple cables.

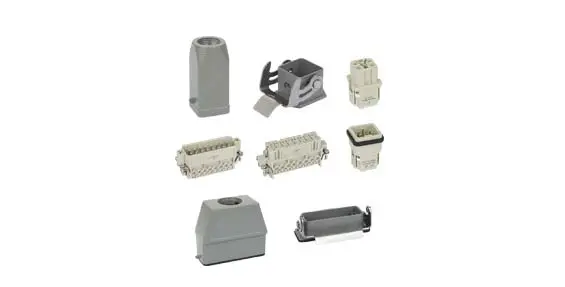

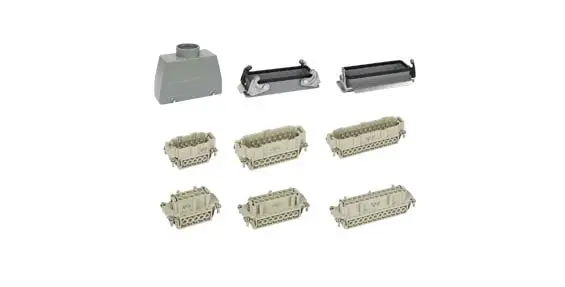

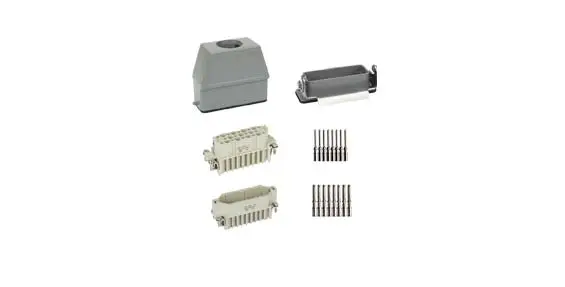

Variety hot runner connectors we offer include male/female inserts, metal housing and hood (PG21, PG29, M25, M32), crimp contacts (5A, 10A, 16A, 35A, 40A).

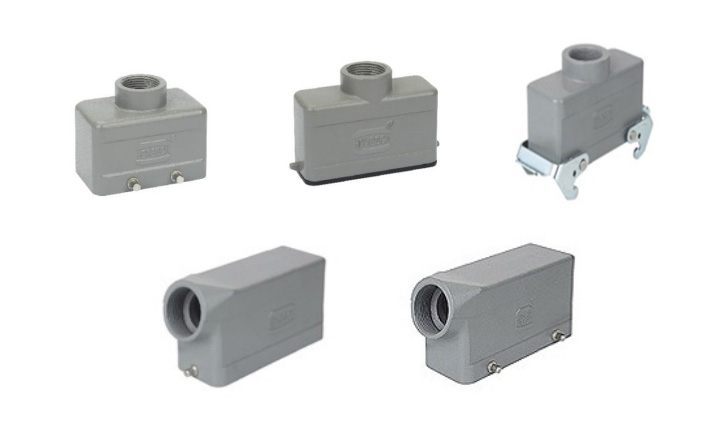

B: Top cable entry with single button
D: Top cable entry with dual button
C: Top cable entry with dual hook
BS: Side cable entry with single button
DS: Side cable entry with dual button
A: Single hook
B: Single hook with cover
C: Two hooks
Various choices or customized | |||
Rated current | 10A，16A | Rated voltage | 500V |
Flammability acc. to UL94 | V10 | Degree of protection | IP65 |
Terminal | Screw terminal, crimp terminal, spring terminal | PIN | 5/10/16/24/25 |

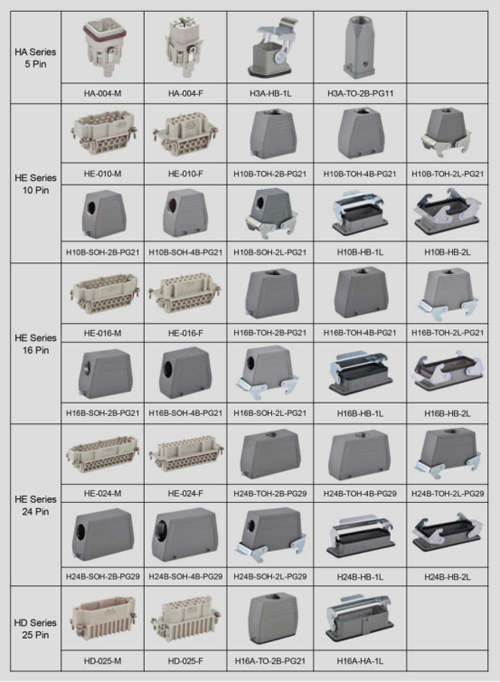

Model | HA/HD/HDD/HE/HEE/HQ series | Contact Material | Copper alloy, Surface: hard silver-plagted |
