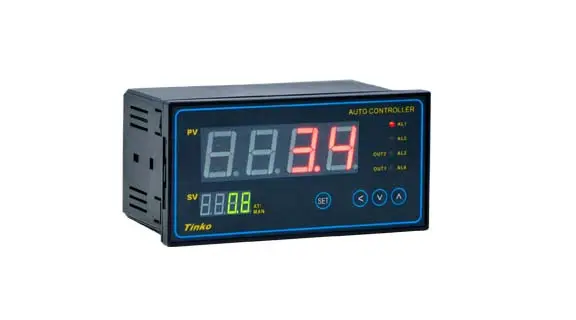

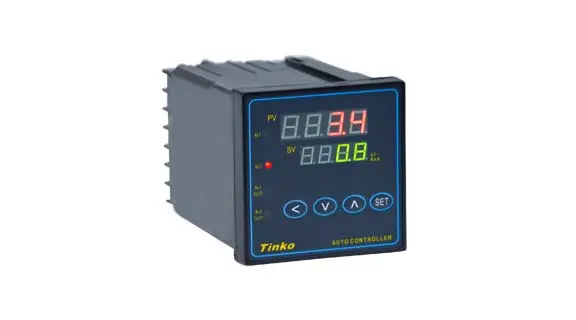

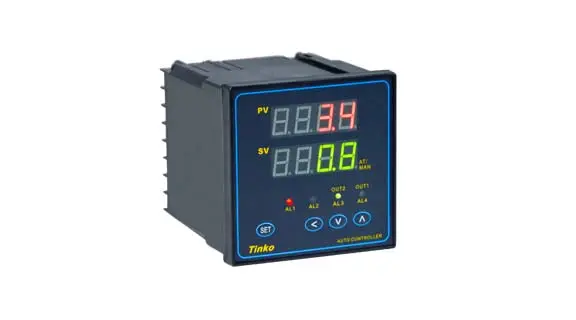

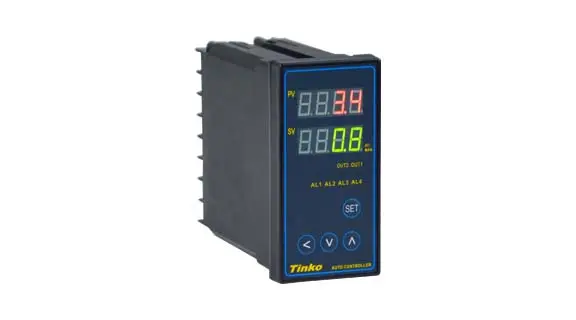

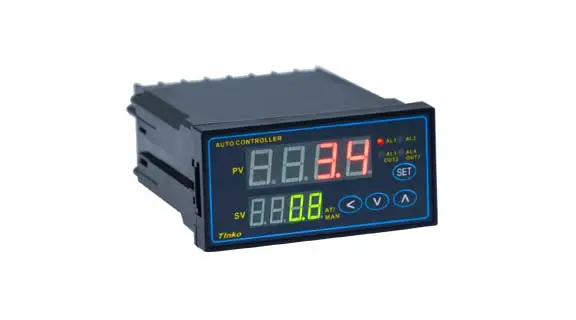

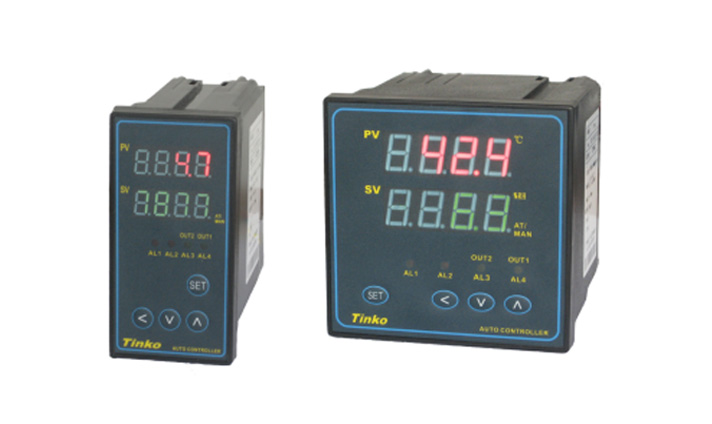

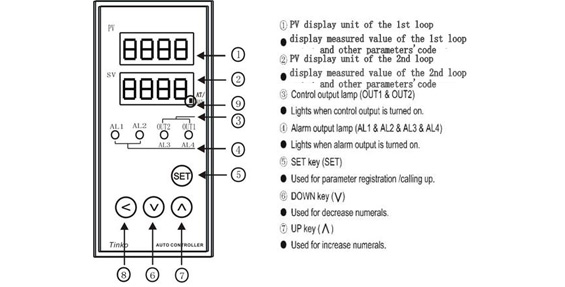

Tinko CTM series controllers are dual loop temp & process controllers, which can manage double zones simultaneously to stabilize the temperature of environments such as ovens, packaging, and heat treatment. Using our CTM series dual-loop controllers can save installation time and costs by giving you one common connection point with less wiring and panel cut outs. Downtime can also be reduced as dual-loop controllers can be changed without powering down the system.
PID auto tuning, manual control
High accuracy and resolution
Universal Inputs and output mode
Sensor break, reverse, short alarm
Heater break alarm
Optional relay alarm output
RS485 communication optional
| Power Supply | AC85~265V, 50/60Hz |
| Accuracy | ± 0.5% F.S. |
| Sensor Input | Thermocouple (K, E, J, N, T, B, S) |
| RTD (Pt100, Pt1000, Cu50, Cu100) | |
| Current (DC. 0-20 mA, 4-20 mA) | |
| Voltage (DC. 0-10V) | |
| Display unit | Dual 4-digit LED |
| Resolution | 0.1°C |
| Output mode | Output mode |
| SSR Drive (Voltage pulse) | |
| DC. 4~20mA | |
| DC. 0-10V | |
| Alarm Outpu | Relay contact, AC250V/3A |
| Communication(option) | RS485, Tinko protocol |
| Auxiliary output | DC 24V feedback |
| Working environment | 0~50°C, 25~85% RH |
| Panel Size (mm) | 48*48, 48*96, 96*48, 72*72, 96*96, 160*80 |
C T L - £ F £ £ £ - £ - £ - £ £ £ - £ - £ - £ -C C
(1) (2) (3) (4) (5) (6) (7) (8)
(1) Front Panel Size (W×H, mm)
4: 48*48 5: 48*96 6: 96*48 7: 72*72 9: 96*96
(2) Input Signal & Range
K03: K (-50~999°C) E03: E (-50~800°C) J03: J(-50~999°C)
T03: T (-50~400°C) P03: Pt100 (-20~580°C) P06: Pt100 (-19.9~99.9°C)
801: 4-20mA 402: 0-10V
(3) Control Output (for heating control)
M: Relay contact (AC250V, 3A) V: SSR Drive (Voltage pulse)
8: D.C.4-20mA 9: 0-10V
(4) Control Output (for cooling control)
M: Relay contact (AC250V, 3A) V: SSR Drive (Voltage pulse)
8: D.C.4-20mA 9: 0-10V
(5) Alarm output
Blank: None M: 1 x Relay contact (AC250V, 3A)
MM: 2 x Relay contact (AC250V, 3A) MMM: 3 x Relay contact (AC250V, 3A)
(6) Transmit output
8: D.C.4-20mA 9: 0-10V
Blank: None
(7) Power feedback output
N: No output (can be omitted) V4: 24Vdc output
(8) Communication
Blank: None C1: RS485 communication
