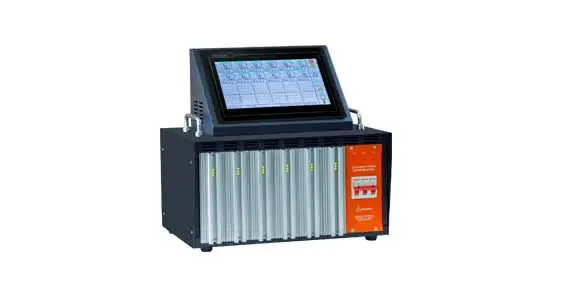

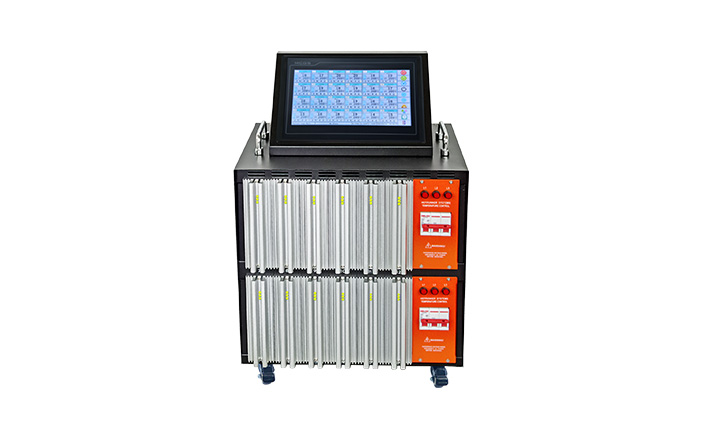

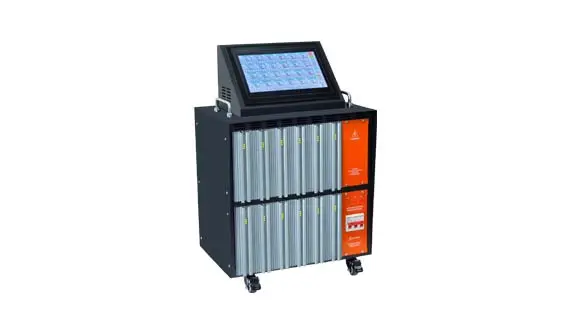

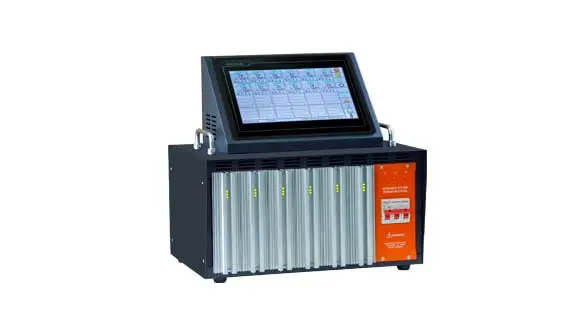

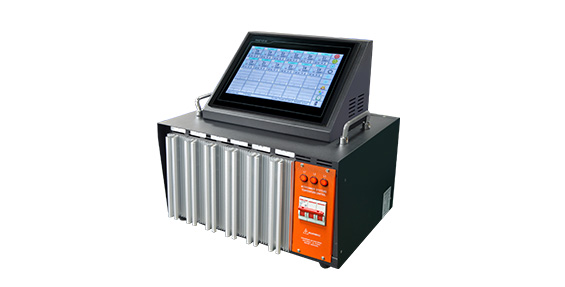

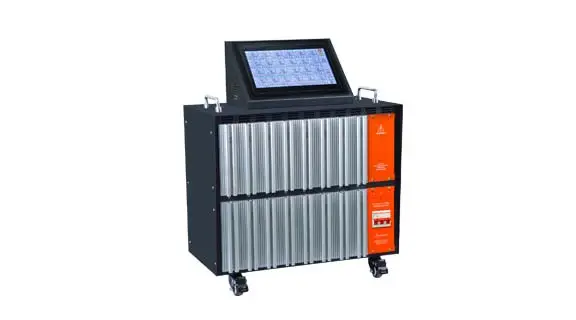

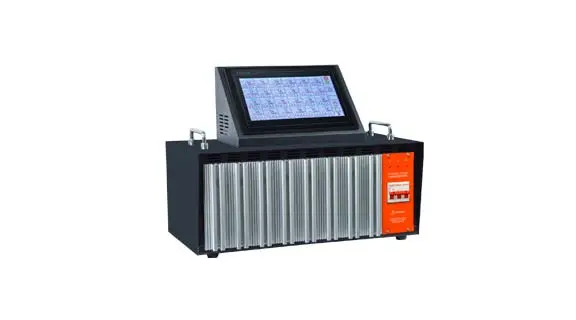

Tinko M20-S series controllers are designed for small cavity injection molds. The maximum temperature control zones can be up to 32 zones. This touch screen temperature controller is equipped with a 10.4" LCD full color touch screen, which makes users more convenient to operate. It supports Modbus TCP, VNC communication and Ethernet port. We also have USB port for users to import and export data.
PID auto temperature control
Editable zone name
Customized start-up interface logo
Current, output percentage display on screen
Two zones per module at 15 Amps per zone
Interchangeable module design, easy for maintenance
Integrated design with external heat sink, reduces downtime
Dehumidify soft start, protects machine
Internal alarm buzzer
Group setup function, easy to operate multi zones
Stop the injection molding machine remotely (optional)
Standby the injection molding machine remotely (optional)
All zones' temperature in tolerance output (optional)
Alarm output function (optional)
Temperature Control Zones | 2-32 zones |
User Interface | 10.4'' Full color LCD touch screen |
Languages | English, French, Spanish, Chinese |
Power Supply | 3-phase, 200-240Vac or 3-phase, 380-415Vac |
Frequency | 50-60 Hz auto switching |
Temperature Display Resolution | 1 or 0.1 |
Temperature Scale | °C or °F |
Thermocouple | J or K |
Output | 240Vac, 15Amps per zone |
Control Mode | Auto, Manual, Standby, Boost, Slave |
Power Control | Phase Angle, Zero Crossing |
Measurement Range | 0~500°C(32~932°F) |
Calibration Accuracy | ± 0.25% Full scale |
Setting Range | 0~450°C(32~842°F) |
Control Accuracy | ± 0.5°C |
Working environment | -0~55°C, 10~80% RH(No condensing) |
Ports | USB and Ethernet |
Communications | Modbus TCP, MQTT, OPC-UA, VNC |
Soft start dehumidify
Plastic Leak Detection
Mold self-test function before working
Alarm output function: relay contact (N/O)
Remote shutdown, remote standby optional
RS485 communication optional
Thermocouple & heater inverse alarm
Heater open, short circuit, overload alarm
Thermocouple open, break, reverse alarm
Input power over voltage protection function
High/Low temperature alarm
Thermocouple open, reverse, short alarm
Heater open, short, overload alarm
Fuse blown alarm
Plastic leakage detection
Overload protection, cut off output
Short Circuit protection, cut off output
Triac damage protection, cut off output
