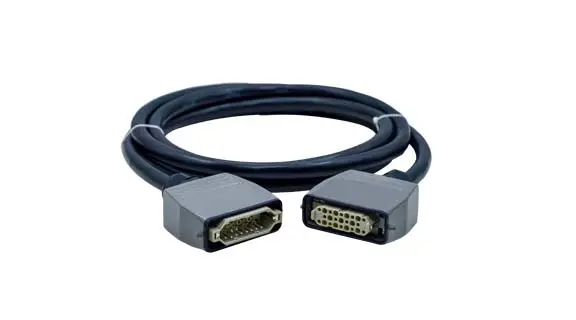

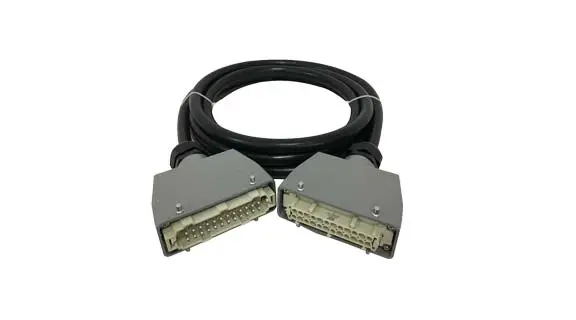

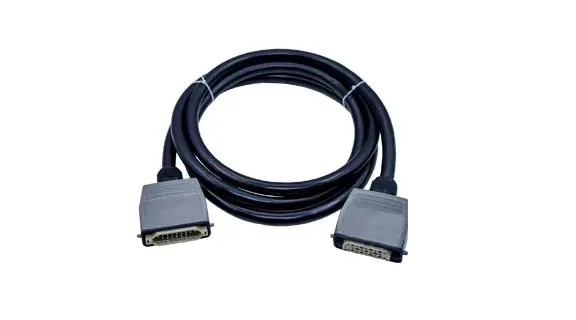

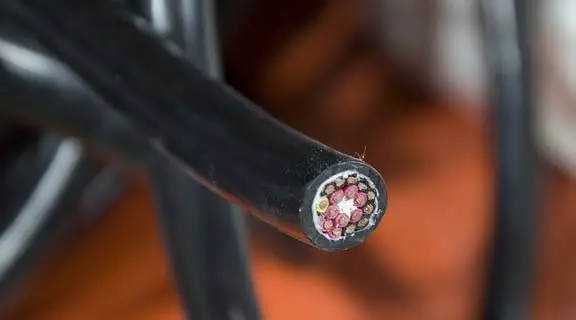

Tinko mold power cables are constructed of high quality, durable and very flexible PVC jacketed cables. The connectors on both ends could be single or double latch based on your request. Connectors can be 10 pin, 16 pin, 24 pin, 25 pin, 32 pin, 48pin, etc. Cable length can be 3 meter, 5 meter, 6 meter and can be customized.

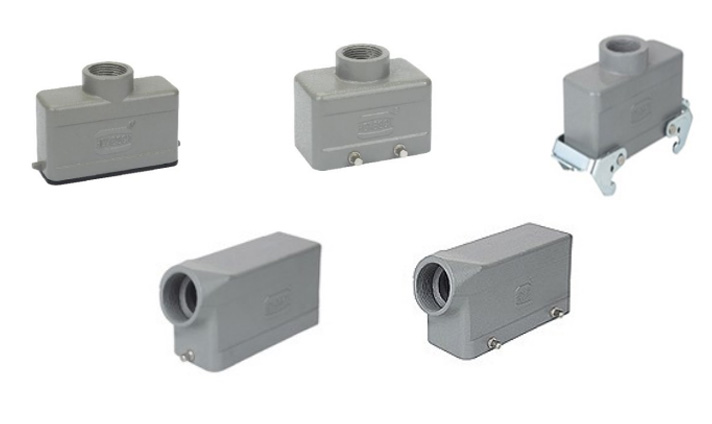

B: Top cable entry with single button
D: Top cable entry with dual button
C: Top cable entry with dual hook
BS: Side cable entry with single button
DS: Side cable entry with dual button
Rated current | 10A or 16A |
Rated voltage | 250V or 500V |
Cores | 10/16/24 |
Cross section | 1.5 mm²² |
Terminal | Screw terminal, crimp terminal |
Housing | 1 lever or 2 lever |
Hood | single latch or double latch |
Length | Standard 3m, can be customized |
