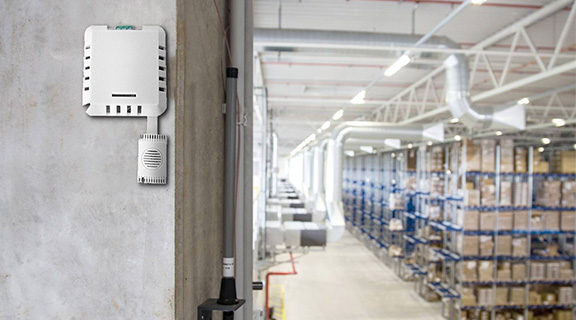

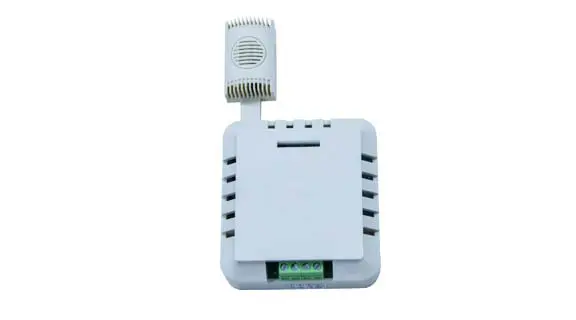

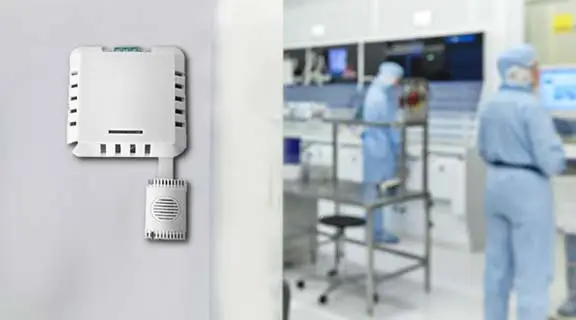

TKSC series temperature and humidity transmitters are designed for indoor air temperature and humidity monitoring in various HVAC systems, building energy management systems, and for applications like industrial plant, clean room, lab, machine room, commercial buildings, airport and schools. They are wall mounted with screws.
All-in-one design of sensor, transmitter
High performance digital sensors and circuits
Accurate measurement and temperature compensation
Reliable long-term stability and reliability
100% field changeable sensors, no re-calibration needed
Fast response, low offset
Small size and economic price
| Power Supply | AC24V or DC24V (12V-30V) |
| Display | No display |
| Range | -40-70°C, 0-100% RH (non condensing) |
| Accuracy | Humidity ± 2% RH (0-95%) |
| Temp ± 0.3% °C (0-50°C) | |
| Output mode | DC. 4~20mA |
| DC. 0~10V | |
| Response time | ≤15s (1m/s wind speed, in slow air) |
| Stability | Humidity ≤1% RH / Year, Temp ≤0.1°C / Year |
| Mounting | Wall mount with screws |
| Working environment | -10~60°C |
